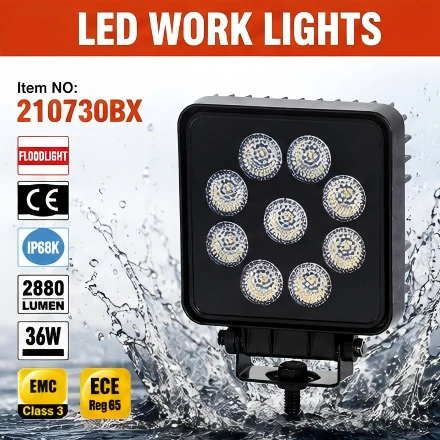

36W LED Work Light With DT Connector And Temperature Control Circuit 12-40V DC Flood Lamp For Truck Tractor Excavator
This 36W square LED work light is equipped with DT plug and built‑in temperature control circuit, wide DC 12‑40V input, delivers 2500LM high brightness flood beam, IP68K waterproof rating, die‑cast aluminum housing and stainless‑steel mounting bracket. It is E‑MARK certified, suitable for excavators, tractors, trucks and various heavy‑duty off‑road vehicles.
Description
36W LED Work Light With DT Connector and Temperature Control Circuit 12-40V DC Flood Lamp for Truck Tractor Excavator
Products Details
Introducing the 210730BX Led Work Light– Engineered for Longevity & Versatility
This high‑performance 36W square LED flood work light is engineered for heavy‑duty off‑road and commercial vehicle lighting solutions, featuring a practical DT connector for quick and stable wiring connection and built‑in temperature control circuit to protect LED chips from overheating under long‑hour continuous operation, supporting wide DC 12‑40V voltage input to fit most trucks, excavators, tractors, mixers and engineering machinery; generating 2500 lumens bright floodlight output with high‑quality PC lens, it achieves IP68K excellent waterproof performance to resist dust, heavy rain and high‑pressure water jet in harsh outdoor working conditions, robust die‑cast aluminum housing ensures great heat dissipation while the durable stainless‑steel mounting bracket allows flexible angle adjustment for different lighting requirements, and it complies with E‑MARK, ECE R65 and RoHS certifications, offering reliable long‑time illumination for construction sites, farm land and road transportation.

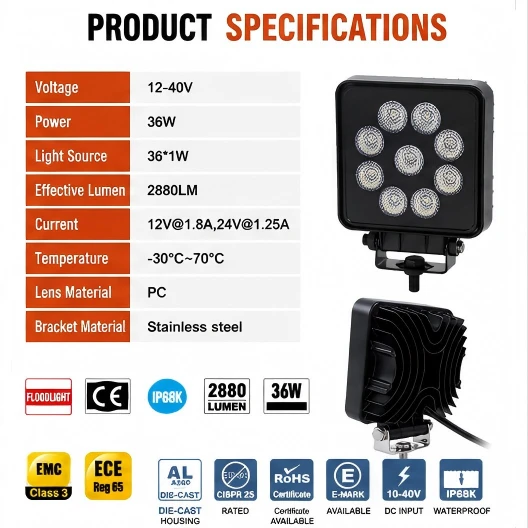

Products Detail
| Working Temperature | -30°C~70°C |
| Voltage | Universal DC 12-40V |
| Warranty | 2 Years |
| Light Source | 36*1W |
| Lens Material | PC |
| Current Draw | 12V 1.8A,24V 1.25A |
| Waterproof rate | IP68K |
| Approvals | ECE R65 R10/CE/ROHS |
| Customize | Logo,Packing ... |
| Housing color | Black |
| Bracket Material | Stainless Steel |
| Dimension | 4.3"*5.0"*2.0" |
| Lumen | 2500LM |
Key Points
1. Built‑in temperature control circuit prevents LED chips from overheating for extended service life

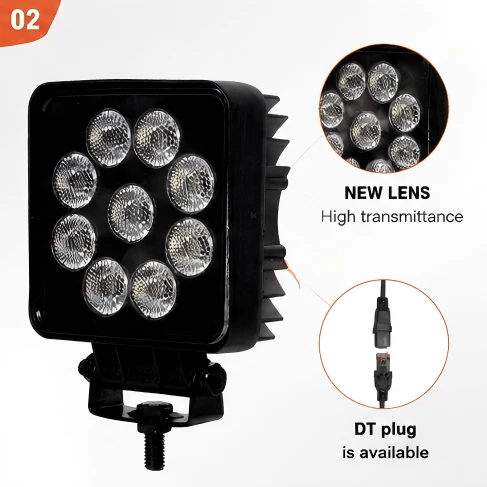

2. Equipped with DT plug connector for fast, stable and anti‑vibration wiring connection
3. Wide DC 12‑40V working voltage, compatible with various heavy‑duty vehicles and engineering machinery
4. IP68K high‑level waterproof & dustproof rating, adapts to dusty, rainy and other tough outdoor environments

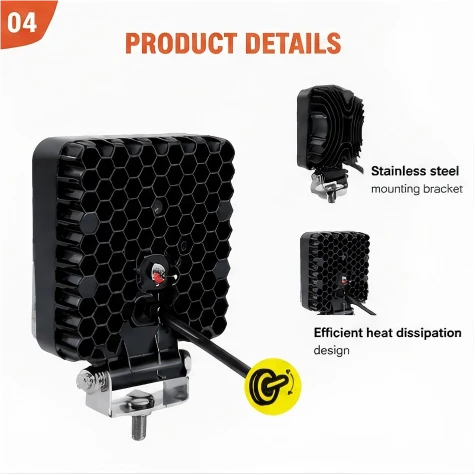

5. Die‑cast aluminum housing for efficient heat dissipation, stainless‑steel adjustable mounting bracket for flexible installation angle
6. 36W high‑power flood beam output, E‑MARK & ECE Reg65 certified, stable illumination for off‑road and construction use
